10.1-inch Engineering Vehicle Video Surveillance Vehicle-Mounted Display Screen

Built on the foundation of Linux and other operating systems, this product launches a complete lineup of 5-inch engineering machinery instruments.

+8613651879559 Send Enquiry

DETAILS

10.1-inch engineering vehicle video surveillance Vehicle-Mounted display screen

Built on the foundation of Linux and other operating systems, this product launches a complete lineup of 5-inch engineering machinery instruments. It delivers core capabilities including instrument display, data communication, and card-based login, while integrating standard instrument functions alongside practical features such as a driving recorder, 4G module (car networking), Bluetooth, Wi-Fi, GPS/Beidou positioning, speaker, and radio.
Moreover, the instrument supports expandable memory of 256GB and above, enables software upgrades via USB or Wi-Fi, and offers tailored customization solutions to meet specific user requirements.

Technical Parameters of 10.1-inch engineering vehicle video surveillance Vehicle-Mounted display screen

 Application Scenarios

 Electric forklifts, tractors, sightseeing carts, golf carts, etc.

showing type

TFT 10.1-inch display, 1024*600 resolution

Working Voltage

DC 8V-36V

communication mode

Dual-channel CAN interface

terminal output

 Swipe card, radio, Bluetooth music playback

Optional configuration

 Face recognition or card swiping


Core Advantages of 10.1-inch engineering vehicle video surveillance Vehicle-Mounted display screen

1,Two channel monitoring recording and playback

2,Left and right channels,wired communication

3,human-computer interaction,Total mileage display,Personalized function setting fault indication

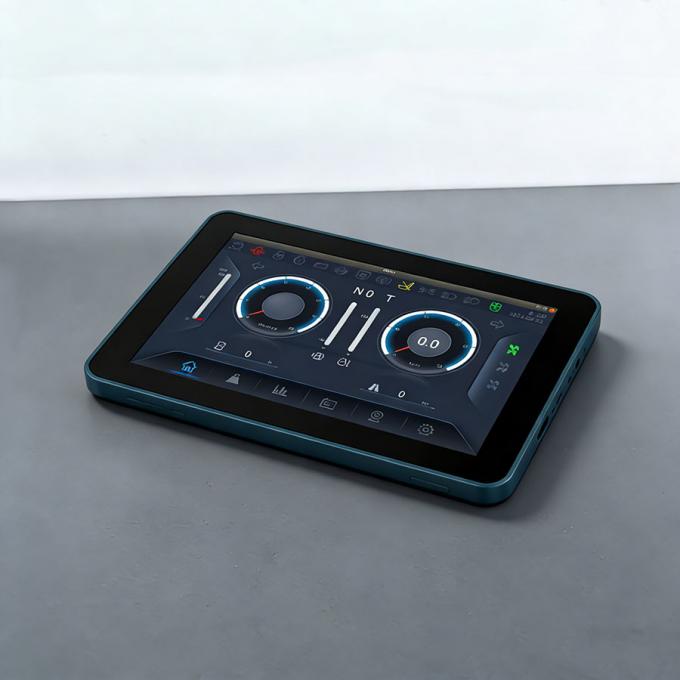

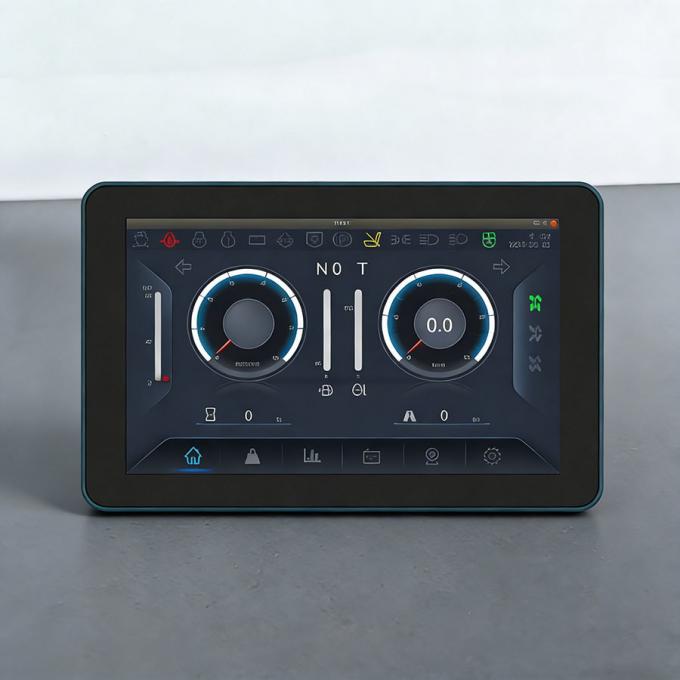

 10.1-inch Engineering Vehicle Video Surveillance Vehicle-Mounted Display Screen 010.1-inch Engineering Vehicle Video Surveillance Vehicle-Mounted Display Screen 1


Can vehicle-mounted display screens be connected to other vehicle systems?

Vehicle‑mounted display screen supports connection with other on‑board systems, mostly through CAN‑bus communication interface.
It is able to interact with:

◆ Battery Management System (BMS): obtain battery SOC, voltage, current, temperature and battery fault information.

◆   Motor controller: read motor speed, torque, operating status and drive fault codes.

◆    Hydraulic & pressure monitoring system: collect pressure, temperature data for hydraulic components.

◆    Vehicle alarm modules: receive trigger signals for over‑temperature, over‑current and other protection alarms.

Important prerequisites:
The connected devices shall follow compatible CAN‑bus protocol.
If your vehicle adopts private / non‑standard protocol, we can realize data interconnection by software customization, or you may add an external signal conversion module.
Please provide protocol documents of your vehicle systems, so we can evaluate the feasibility of connection.
