5.2-inch Construction Machinery Excavator Instrument

This series of products has maintained the top market share in the industry for years. Based on systems such as RTOS, HarmonyOS, and Linux, we have developed a full range of construction machinery instrument products covering 2.8 inches to 12.3 inches.

Place of Origin:Hefei，Anhui，China
Brand Name:Shinny
Certification: Certification Support, Customizable Services
Model Number:DZB1262B-BYD

+8613651879559

Send Enquiry

DETAILS

5-inch Embedded Electric Forklift Intelligent Display Screen

These products realize basic functions including instrument display, communication, and card swiping login, and support expansion of 4G/5G communication, GPS/Beidou positioning, and other functions. High-end products can achieve on-vehicle video monitoring, face recognition, DMS (Driver Monitoring System), BSD (Blind Spot Detection), and other advanced features. Additionally, personalized customized design is available according to user requirements.

Technical Parameters of 5.2-inch display screen for internal combustion and electric forklifts

Application Scenarios	Combustion And Electric Forklifts
Resolution	416×1280
Working Voltage	12V or20～110V
Operating Temperature	-30°C~+75°C
Protection level	Front: IP65, Bottom shell direction: IP54
display screen	5.2-inch TFT color LCD screen

Core Advantages of 5.2-inch display screen for internal combustion and electric forklifts

1. 32-bit Cortex M3 main control chip with multiple display languages
2. Support 4 buttons+card swiping function, support parameter configuration of electronic control system
3. Scalable integrated vehicle networking or non four vehicle terminal

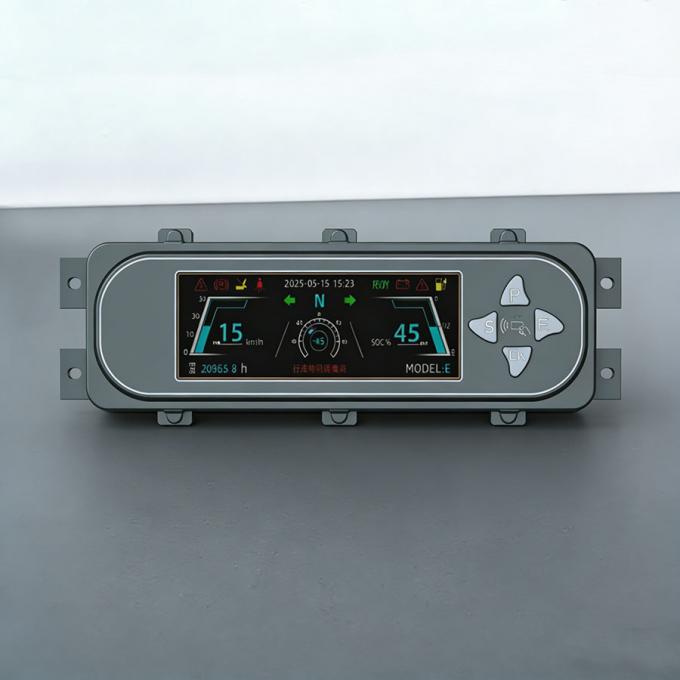

5.2-inch Display Screen For Internal Combustion And Electric Forklifts 0

Do vehicle-mounted display screens support wireless connection to other vehicle systems?

The standard vehicle‑mounted display screen communicates with vehicle controllers, BMS and other on‑board systems through wired CAN‑bus interface, which guarantees real‑time and anti‑interference performance for industrial vehicle operation.

Wireless connectivity including Bluetooth, Wi‑Fi and 4G can be added as customized options:

Typical wireless application scenarios
‑ Upload vehicle running data, working hours and fault records to remote cloud platform.
‑ Wireless parameter configuration and remote firmware upgrade.
‑ Short‑range debugging and data export with mobile devices.
Important limitation
Wireless channel is not suitable for real‑time safety‑related vehicle internal signal transmission.
In busy warehouse environments, electromagnetic interference, metal shielding and vehicle vibration may lead to signal delay, packet loss or temporary disconnection. For safety‑critical data, wired CAN‑bus remains the most reliable solution.

If you require wireless functions, please provide detailed project conditions. We will evaluate hardware modification, software adaptation and extra cost for you.

DETAILS

5-inch Embedded Electric Forklift Intelligent Display Screen

Technical Parameters of 5.2-inch display screen for internal combustion and electric forklifts

Core Advantages of 5.2-inch display screen for internal combustion and electric forklifts

Do vehicle-mounted display screens support wireless connection to other vehicle systems?
