Bulldozer Touch Screens

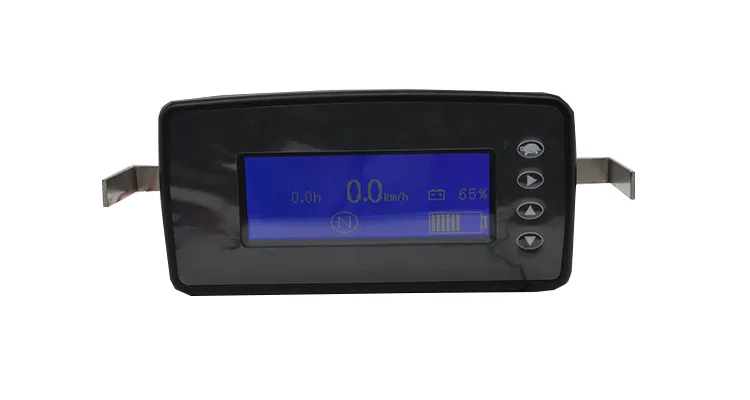

The DZB801-HC electric forklift combination instrument display screen integrates all the vehicle's operating data on a single screen. It enables real-time monitoring of battery power, vehicle speed and equipment status, with built-in fault warning alerts. Our display screen is of industrial-grade shock resistance and durability, with strong light visibility and stable operation.

Place of Origin:Hefei，Anhui，China
Brand Name:Shinny
Certification: Certification Support, Customizable Services
Model Number:DZB1262B-BYD

+8613651879559

Send Enquiry

DETAILS

Anti-seismic and durable, high-definition digital display, dedicated combination instrument for Bulldozer

The Bulldozer combination instrument display screen integrates all the vehicle's operating data on a single screen. It enables real-time monitoring of battery power, vehicle speed and equipment status, with built-in fault warning alerts. Our display screen is of industrial-grade shock resistance and durability, with strong light visibility and stable operation. It is compatible with multiple types of electric forklifts, has strong installation adaptability, and is an ideal on-board display terminal for warehouse and logistics vehicles.

Technical Parameters of Bulldozer Touch Screens

Screen	Specialized combined instrument display screen for electric forklifts
Supported Resolution	1280×800
Built-in Function	Built-in Bluetooth
Communication Modules	4G, GNSS: Optional; BLE: Standard
Featured Functions	Radio Supported, 2-channel Video Monitoring Optional

10.1-inch Full-Lamination Touch Screen Forklift Display with 1280×800 HD Resolution and Industrial-Grade Shock Resistance 0

How does a full-lamination touch screen work?

Full‑lamination touch‑screen technology integrates touch‑sensor glass and TFT display panel into one monolithic module by optical bonding process.

Working principle

◆ Structure composition:Traditional frame‑bond touch screen keeps an air gap between touch‑sensor glass and TFT display.Full‑lamination fills the gap with high‑transmittance optical adhesive: either solid OCA film or liquid LOCA glue. After laminating, vacuum degassing and UV curing, touch‑sensor glass and TFT display are firmly bonded without air bubbles or air gaps.

◆ Touch signal operation:The capacitive touch‑sensor layer on inner side of cover glass captures touch coordinate signals when operator touches screen surface. Since touch‑sensor glass is closely attached to TFT display, there is no relative displacement between touch layer and picture output surface during vibration. Touch coordinates remain accurate, no offset or ghost touch.

◆ Optical performance principle:Air‑gap structure causes light reflection at every interface. Removing air gap via optical glue reduces interface reflection, improves light transmittance and contrast. Thus, screen content is much clearer under strong sunlight.

◆ Environmental performance:Without internal air cavity, there is no space for dust to enter or moisture to condense into fog inside the module under large temperature difference.

Key limitation

Touch‑sensor glass and TFT panel are glued firmly. Once one part is damaged, they cannot be peeled apart for repair. The entire full‑lamination module needs to be replaced.
