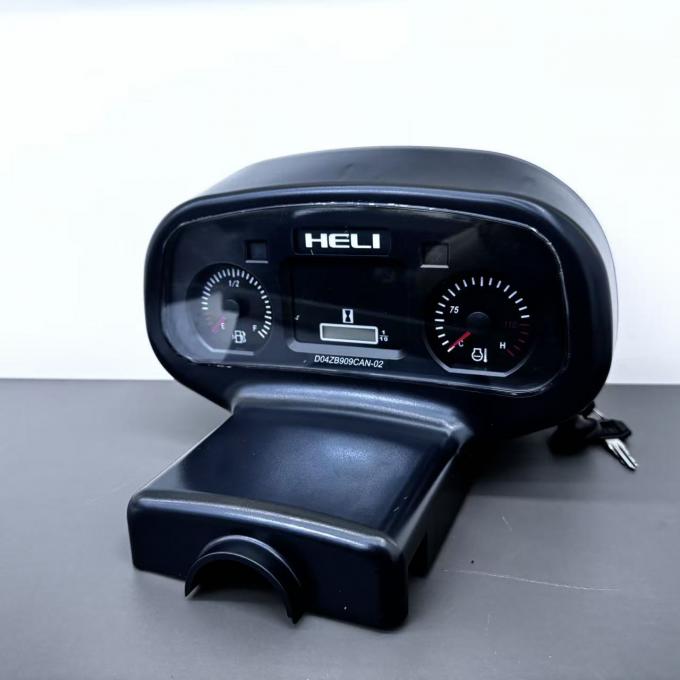

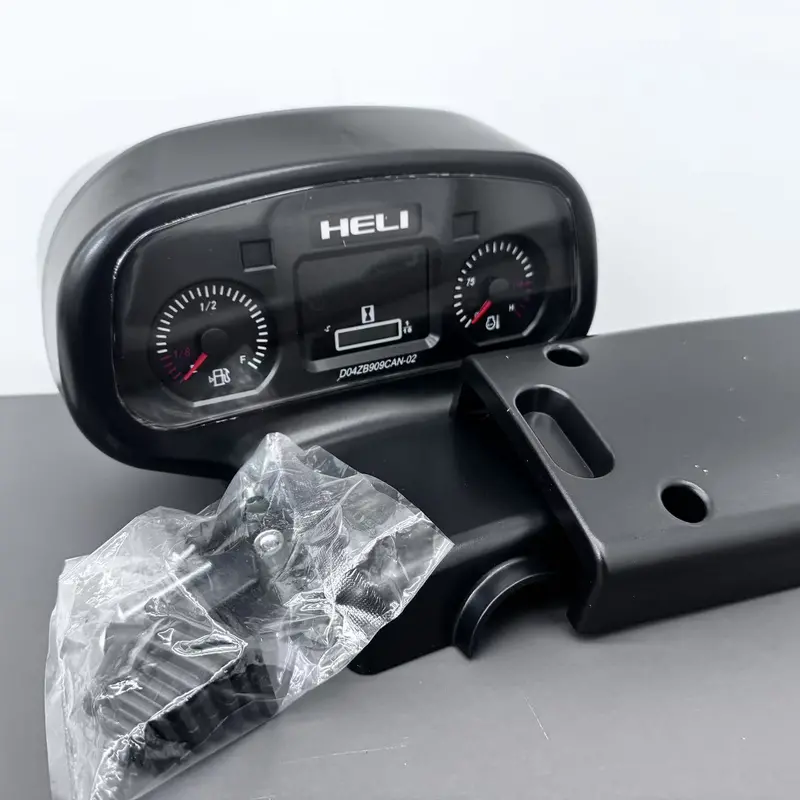

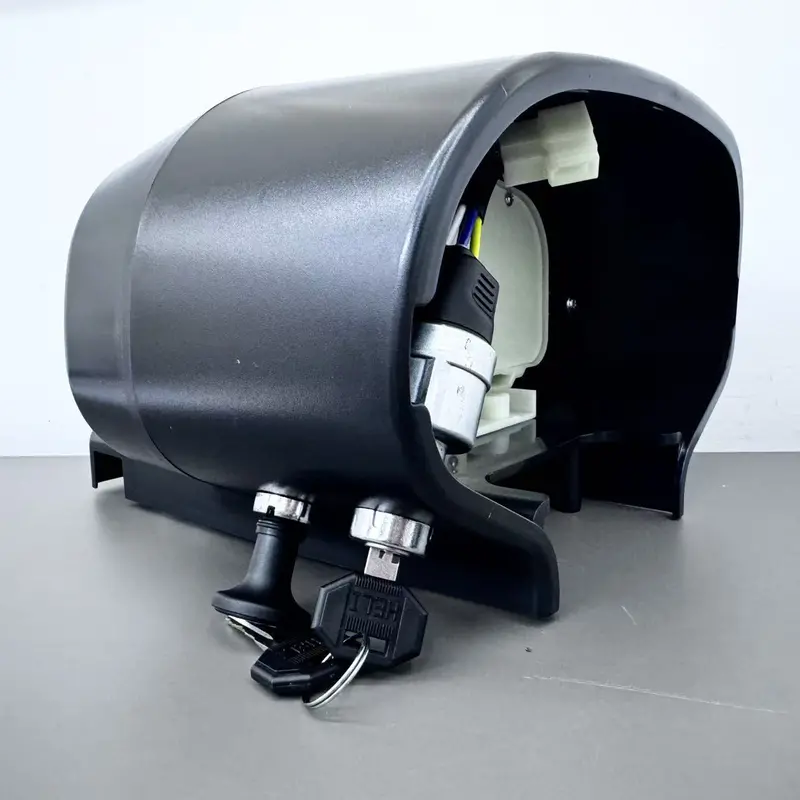

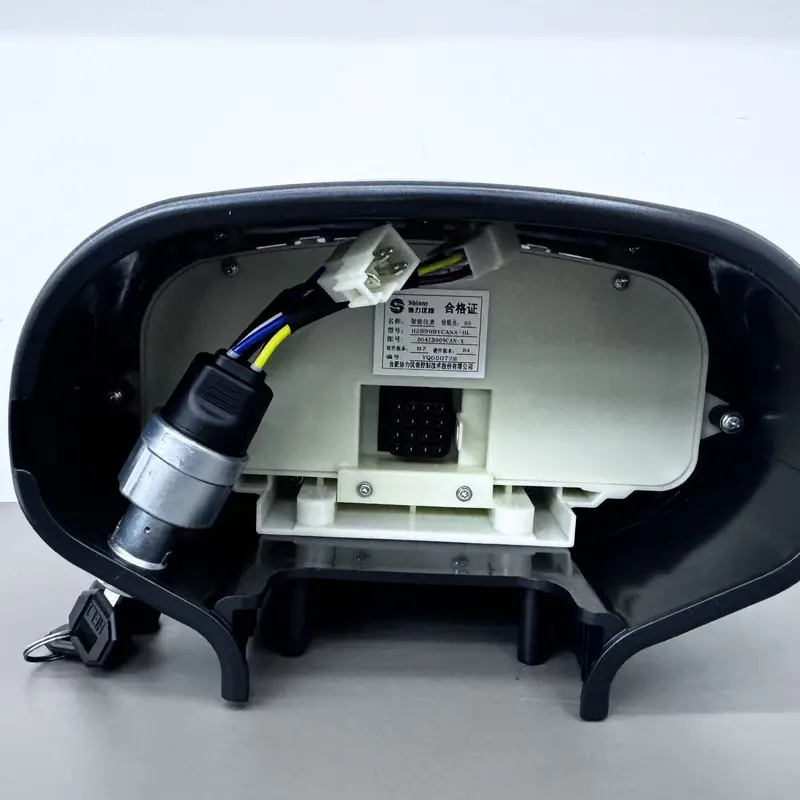

Central Control System for AGV  Diesel Forklift Dashboard HELI Forklift DC12V HZB909YCANX Steering Column Installation

The HZB909 pointer-type intelligent dashboard is specially designed to meet the durability and intelligence requirements of electric forklifts in complex environments. The core hardware of the product has outstanding adaptability: the DC12V/24V universal power supply enables it to be easily adapted to different vehicle models. The front IP54 protection capability effectively resists the invasion of water vapor and dust on site. The installation method of the steering column is convenient for flexible deployment in various cockpits.

Beyond the limitations of traditional pointer instruments, this forklift dashboard is equipped with a powerful vehicle network function, which can be operated through a mobile phone APP or touch screen to achieve vehicle communication, positioning monitoring and operation data storage. In terms of security, it not only offers convenient login management methods such as card swiping, fingerprint recognition, and facial recognition, but also builds a comprehensive safety protection network for drivers by integrating BSD, DMS, and 360-degree surround view systems. The CE certification passed by some models is a powerful proof of their durable quality and outstanding performance.

Technical Parameters of Central Control System for AGV :

Core Advantages of Central Control System for AGV :

1. Wide Voltage Compatibility: support DC12V/24V dual system, the working voltage covers DC10-32V, easy to cope with voltage fluctuations.
2. Full Environmental Adaptation: Stable operation under extreme temperatures of -30℃~80℃, reliable in both cold and heat.
3. Multi-dimensional Monitoring: integrated oil/water temperature/timing 3-in-1 display, 14 kinds of LED status indication (including charging, oil pressure, etc.), instant warning of hidden faults.
4. Ultra-low Power Consumption: dynamic operating current ≤ 700mA, standby power consumption of only 2mA, worry-free range.
5. Strong Protection: IP55 dustproof and waterproof, excellent performance in vibration and humidity environment.
