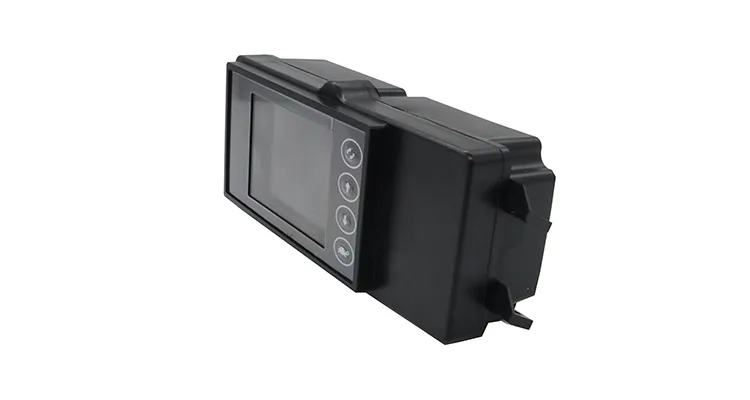

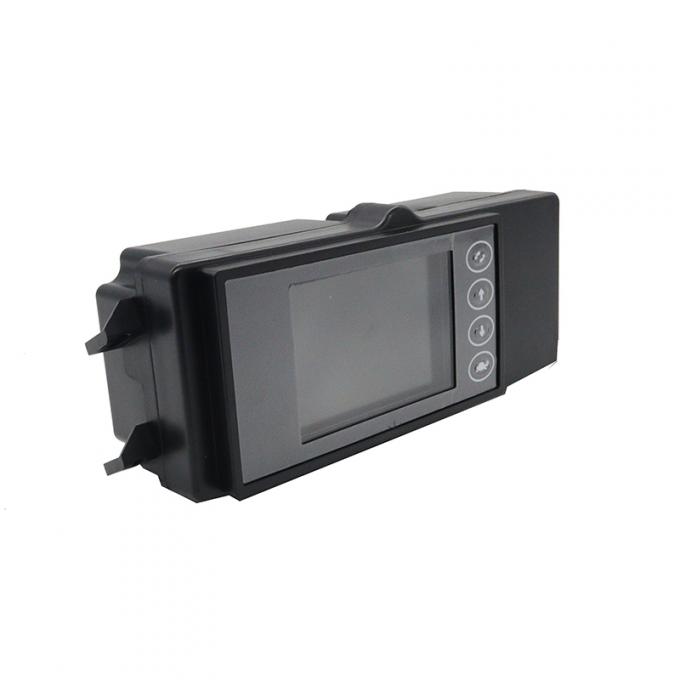

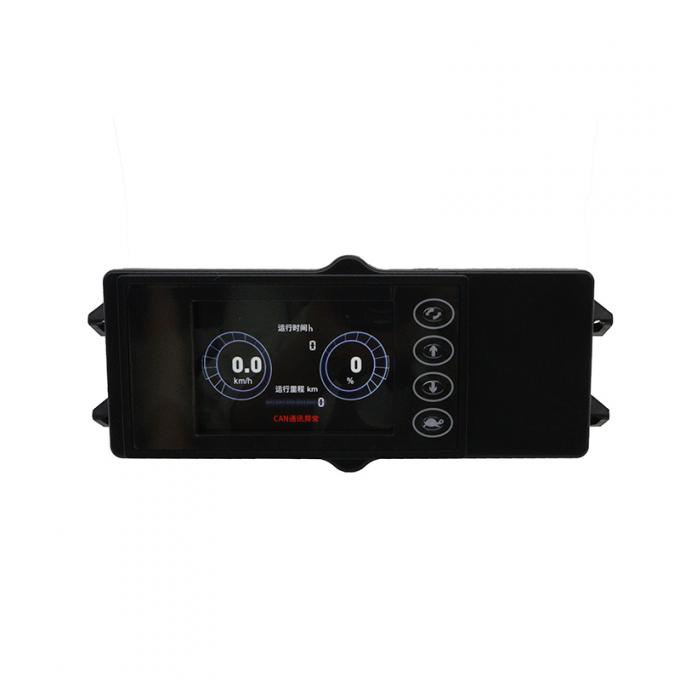

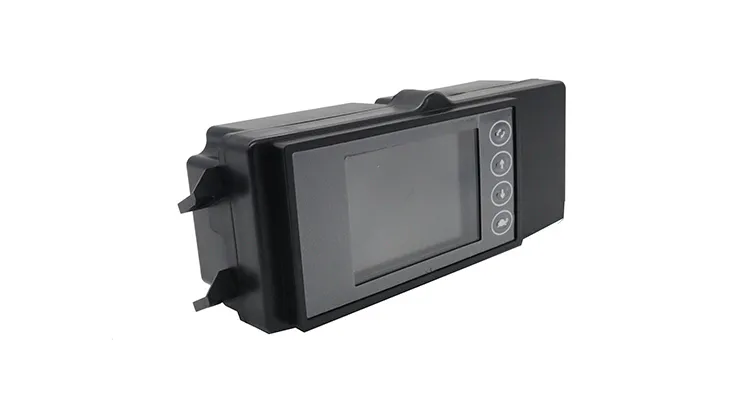

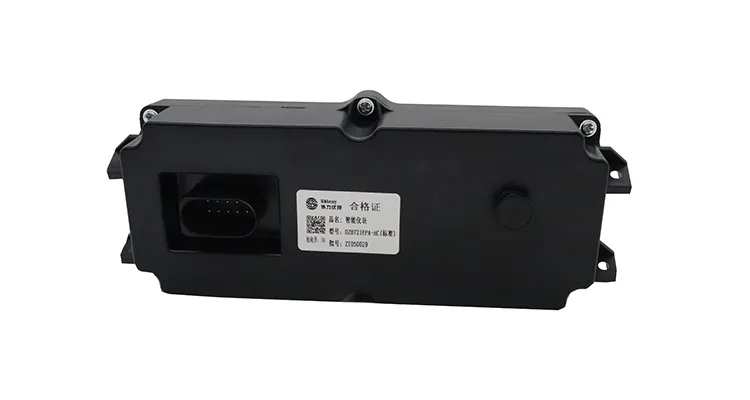

Crane Monitor Display Panel  screen 24V IP66 CAN signal

The LCD Crane display product model DZB7216PA-HC can achieve basic functions such as instrument display and communication card login. The display screen has clear picture quality and is widely applicable. It can be expanded with 4G/5G communication and GPS/Beidou positioning functions. It can also be customized according to user needs to realize functions such as vehicle-mounted video monitoring, face recognition, DMS, and BSD, and can be personalized according to specific requirements.

This dedicated display for Crane has a core advantage of deeply integrating the intelligent connected vehicle solution. It integrates communication transmission, precise positioning, video monitoring, and data storage. The equipment supports multiple identity verification methods such as card swiping and facial recognition. It also comes equipped with a full set of advanced driving assistance systems including BSD blind spot monitoring, DMS driver status monitoring, and 360° panoramic surround view. Several models have successfully obtained CE certification. Additionally, the display sizes available range from 2.8 inches to 12.3 inches.

The product body structure is sturdy and durable. The working temperature range covers -40°C to +85°C. Combined with professional vehicle speed calibration and weighing calibration functions, it can create a stable, reliable, and powerful intelligent display and control center for special operation vehicles.

Technical Parameters of Crane display DZB7216PA-HC :

Core Advantages of Crane Display DZB7216PA-HC:

1. Wide voltage compatibility: Supports dual systems of DC12V/24V, with a working voltage range of DC10-32V, easily handling voltage fluctuations.

2. All-environment adaptability: Stable operation in extreme temperatures ranging from -30℃ to 80℃, reliable in both severe cold and intense heat.

3. Multi-dimensional monitoring: Integrated oil level, water temperature and timing three-in-one display, 14 LED status indicators (including charging, oil pressure, etc.), and immediate warning of potential faults.

4. Ultra-low power consumption: Dynamic operating current ≤700mA, standby power consumption is only 2mA, ensuring worry-free battery life.

5. Strict  protection: IP55 dust and water resistance, performing exceptionally well in vibrating and humid environments.
