Forklift combined dashboard, high-voltage insulation monitoring, battery energy consumption data statistics

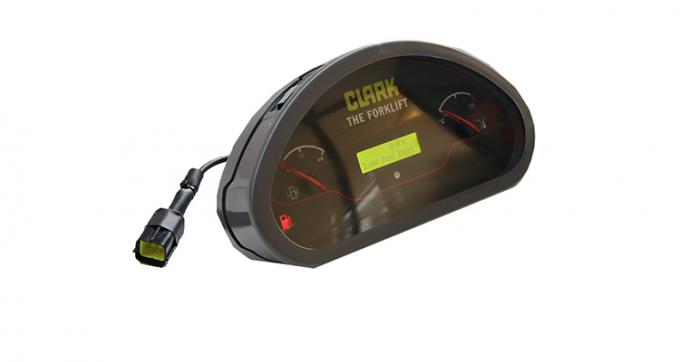

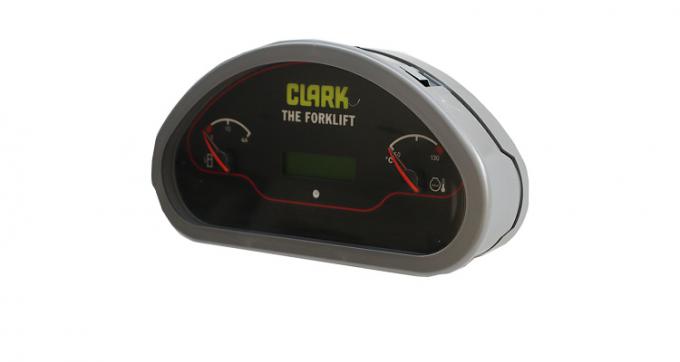

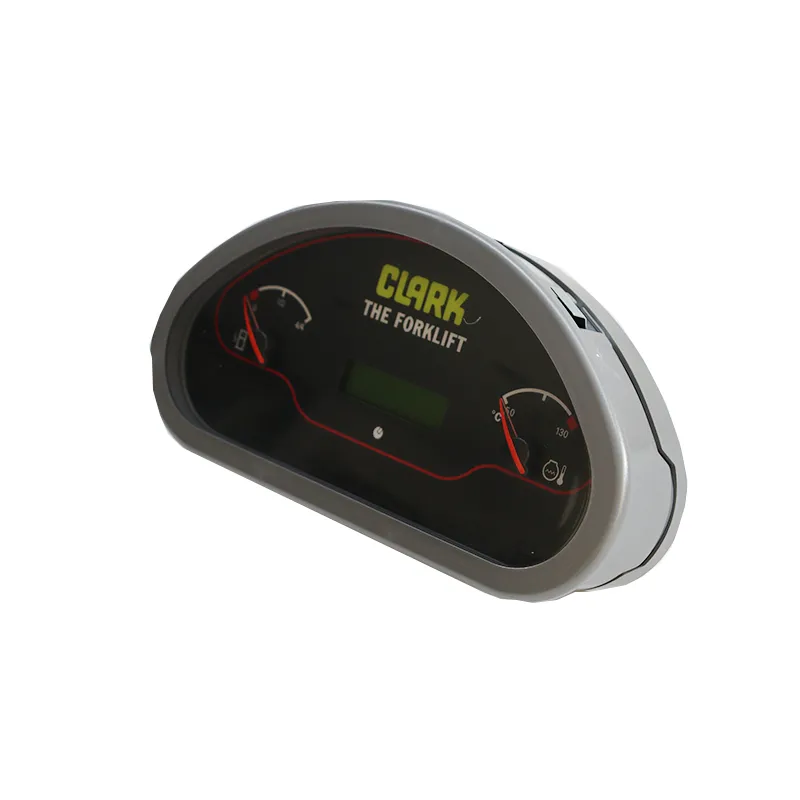

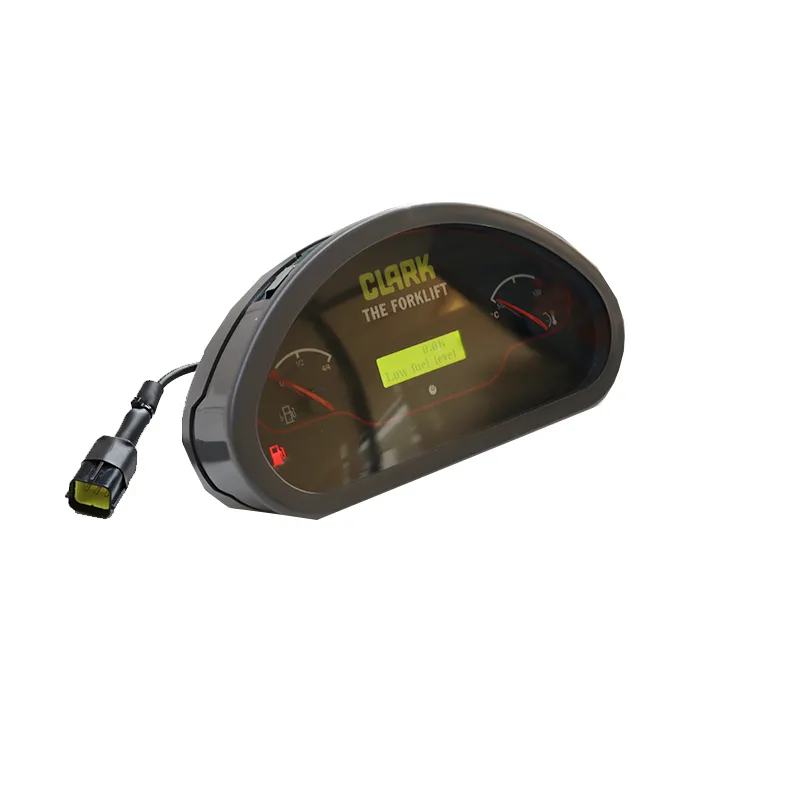

The HZB193CAN-KLK forklift dashboard is specially designed for new energy lithium battery forklifts. This dashboard is equipped with a high-voltage insulation monitoring function. The dashboard can collect the insulation values of the high-voltage circuit in real time. When insulation abnormalities occur, the dashboard will immediately issue an alert, effectively avoiding leakage safety hazards at the source. The dashboard is equipped with a data computing module, which can automatically complete the statistics of battery energy consumption data. The data of single operation and total daily power consumption is completely retained on the dashboard, facilitating fleet management of vehicle costs.

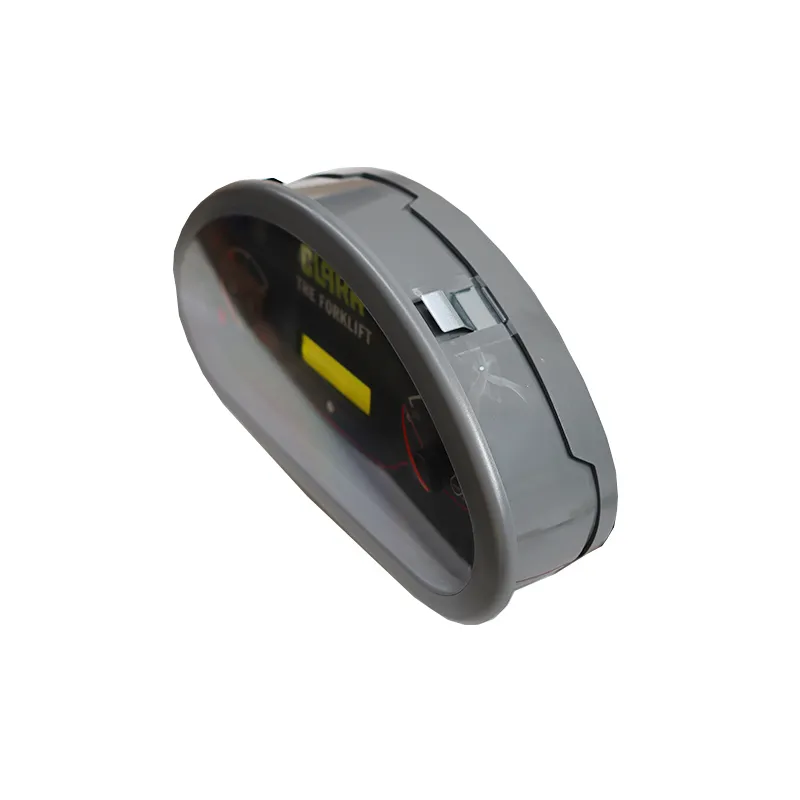

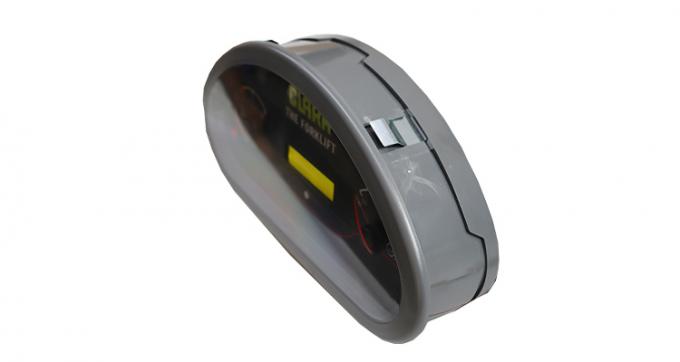

The dashboard is compatible with CAN bus communication. The battery voltage, current, remaining power and other signals are stably transmitted to the dashboard, and the data update is without delay. The high-definition digital display panel makes it easy to understand all parameters of the dashboard at a glance. The reading on the dashboard is clear and not reflective in a strong workshop light environment. The integrated sealed housing protects the dashboard, preventing dust and water vapor from invading the internal circuit of the dashboard, thereby extending the service life of the dashboard.

Standard wiring interfaces simplify the installation process of the dashboard, and various lithium battery forklifts can be quickly matched with the dashboard. The shock-resistant structure strengthens the dashboard, and the dashboard will not display screen flickering or disconnection during rough driving in the factory. The combination of safety monitoring and energy consumption statistics offers dual advantages. This dashboard combines safety and management practicality, making it a high-quality dashboard for new energy forklifts.

Technical Parameters of Custom LCD Multi-Function Dashboard:

What are the common features of a Multi-Function Dashboard?

✅ Hour meter to record total operating time

✅ Battery level display for electric forklifts or fuel gauge for internal combustion forklifts

✅ Coolant temperature indicator for engine monitoring

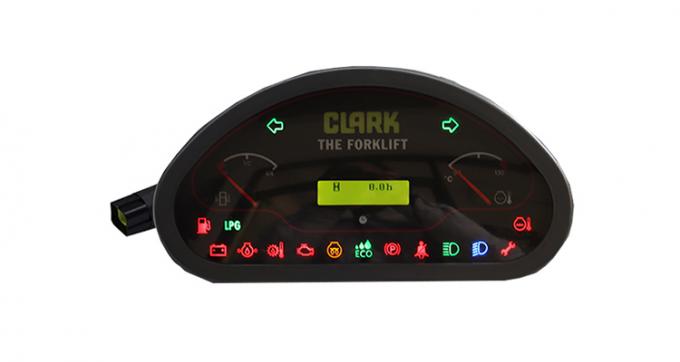

✅ Various warning lights: brake, oil pressure, charging system, fault alert etc.

✅ Turn signal indicator

✅ Fault code display for quick troubleshooting

✅ Clear LED digital display suitable for harsh working environments

✅ Integrated wiring harness interface, convenient for installation and replacement
