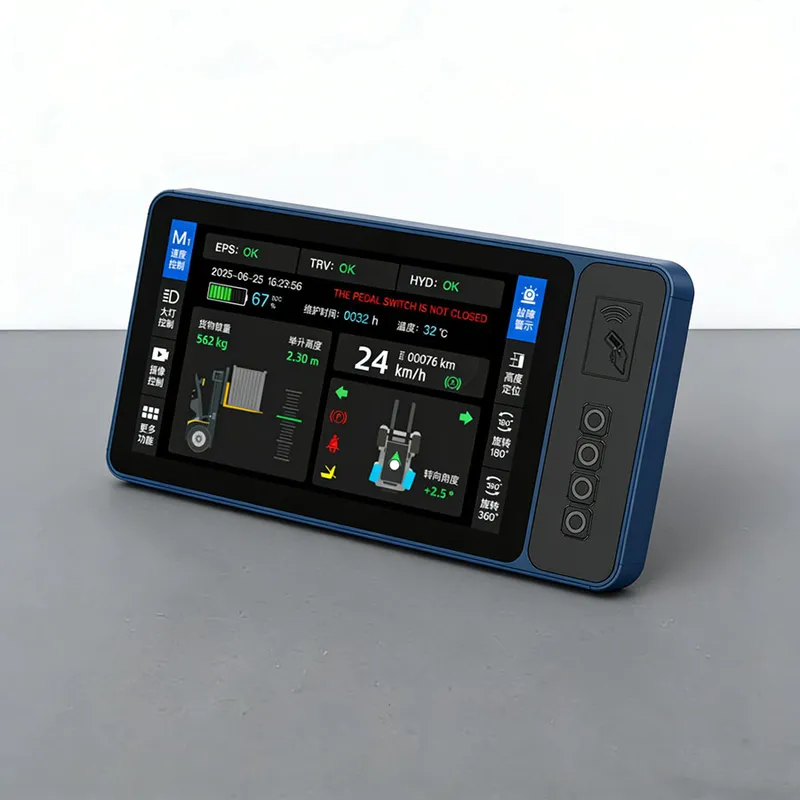

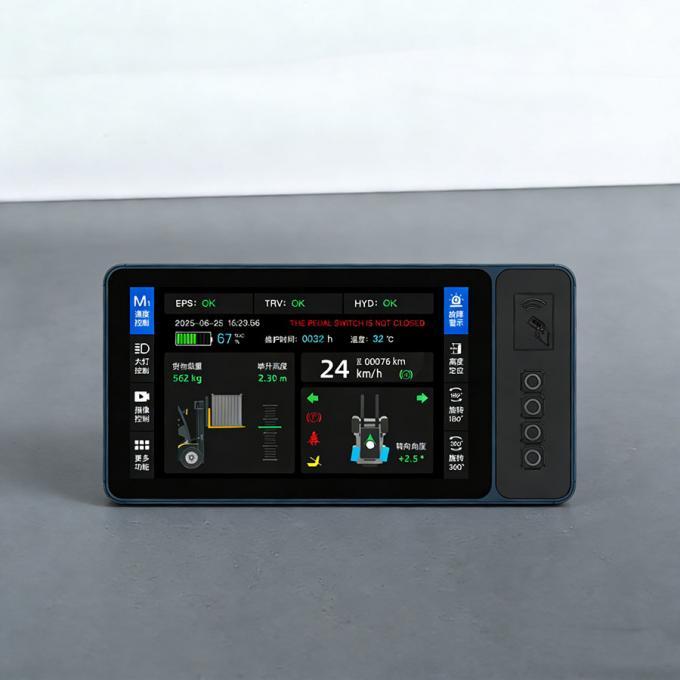

Instrument Cluster For Tractors
Taking Linux and comparable systems as the underlying support, this construction machinery instrument product line covers a full size range from 2 inches to 12.3 inches, and achieves core basic functions including instrument display, data transmission and card authentication login.
The product is compatible with all standard instrument functions, while incorporating value-added features such as driving recorder, 4G module (vehicle networking), Bluetooth, Wi-Fi, GPS/BeiDou positioning, speaker and radio. Additionally, it provides memory expandability of no less than 256GB, enables software maintenance and upgrades via USB or Wi-Fi, and offers custom-configured solutions tailored to individual user specifications.
Technical Parameters of Instrument Cluster
Application Scenarios | Electric forklifts, tractors, sightseeing carts, golf carts, etc. |
Type | 7-inch display, 1024*600 |
Operating Voltage | DC 8V-36V |
Communication Method | Dual-channel CAN interface |
Operating Temperature | -30℃ to +75℃ |
Optional Configurations | Face recognition or card swiping |
Core Advantages of Instrument Cluster
1,Battery and Fuel Level Display,Gear Position Display,Speed Display;
2,Single Trip Mileage Display & Total Mileage Display,Personalized Function Settings;
3,Fault Indication;
What are the characteristics of Tractors Instrument Cluster ?
Tractors Instrument Clusteris an industrial interactive display specially developed for electric and diesel forklifts, with the following core characteristics:
◆ Vehicle‑level power adaptationWide DC 8‑32V voltage input, compatible with 12V and 24V forklift power systems, capable of resisting vehicle voltage surge.
◆ Excellent environmental adaptabilityIndustrial wide‑temperature hardware and anti‑vibration structure to cope with frequent jolts during forklift operation. Front‑panel reaches IP65 rating for dust and splash protection.
◆ Two bonding structure optionsFrame‑bonded version for cost‑sensitive indoor warehouse projects; fully‑laminated touch screen with low reflection, anti‑fogging and superior sunlight visibility for outdoor working environments.
◆ Vehicle signal compatibilitySupports CAN‑bus signal parsing to obtain real‑time forklift data: battery level, working hours, motor parameters and fault codes.
◆ Vibration‑optimized touch performanceBuilt‑in anti‑shake touch algorithm to reduce mis‑trigger under normal forklift vibration.
◆ Powerful custom capabilitySupport custom UI layout, brand logo, multi‑language firmware, display content and alarm logic to match HELI, JAC and other forklift brands.
