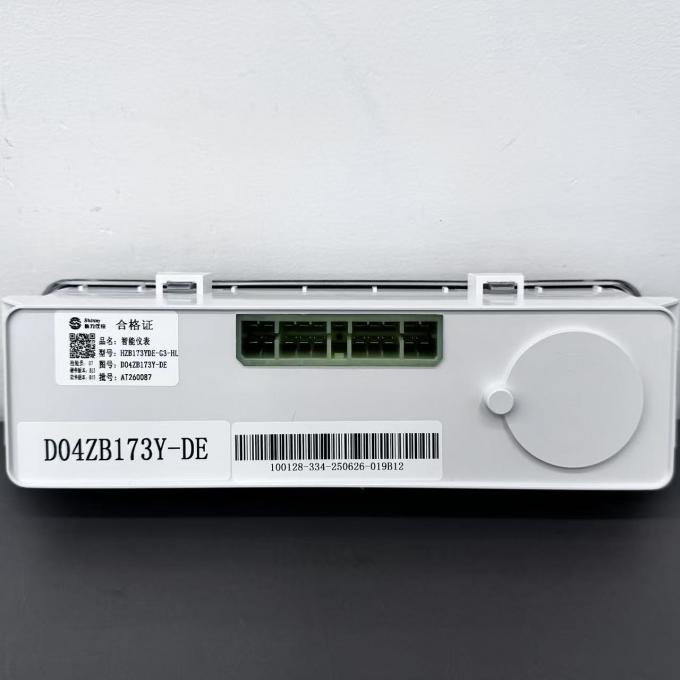

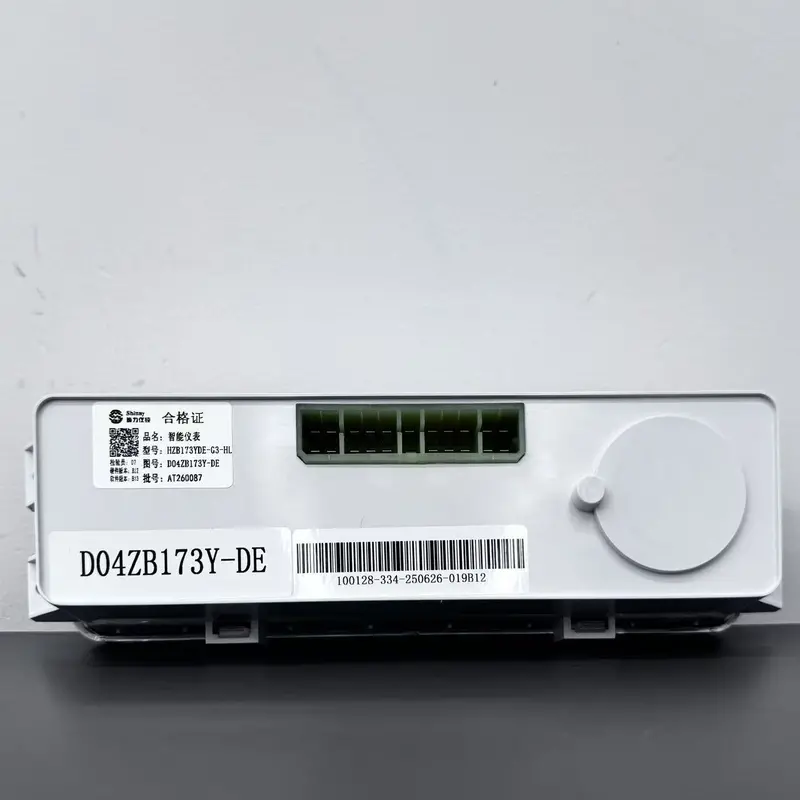

Motor Grader Instrument Panel Cluster 12V 24V HELI Forklift HZB173Y-G3 G3 Standard Embedded Installation

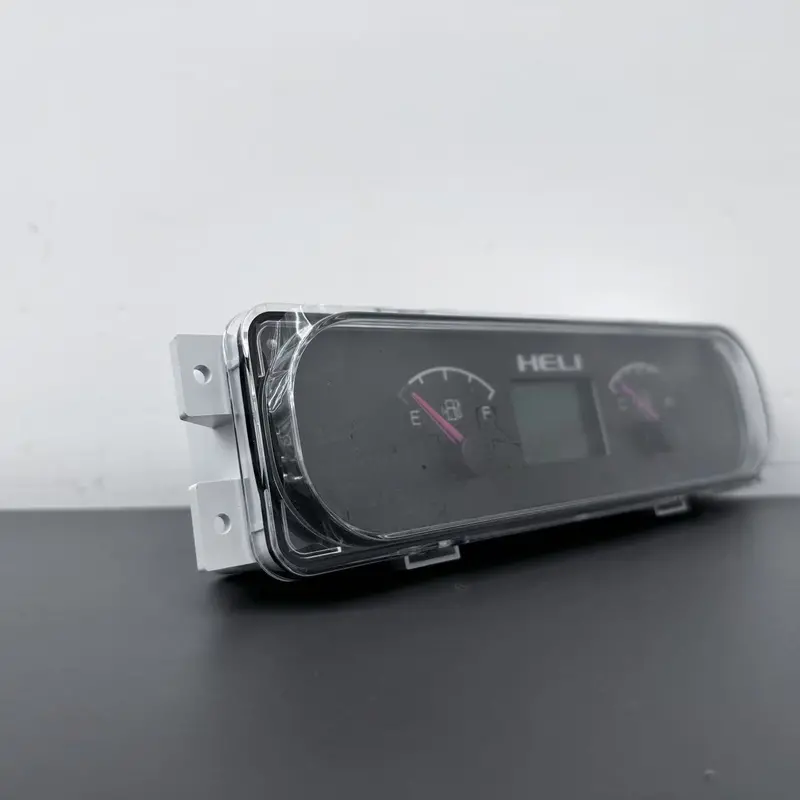

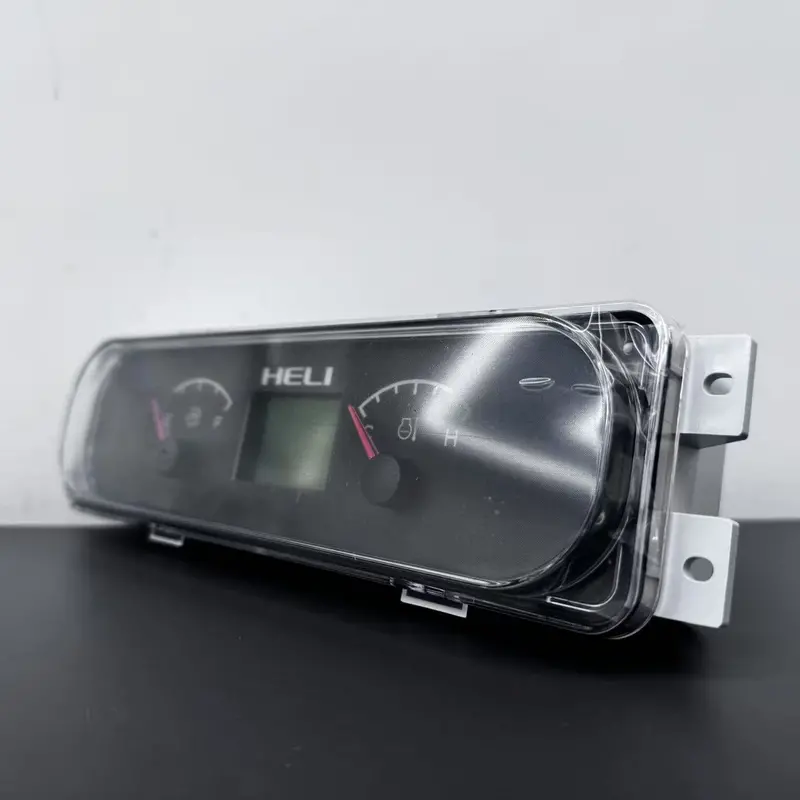

The HZB173YDE-G3-HL is a core forklift dashborad unit specifically designed for diesel forklift, featuring a wide voltage adaptive capability of DC12V/24V. Its operating range covers DC10-16V (12V range) and DC20-32V (24V range), ensuring stable operation in complex power supply fluctuation environments. The core functions of the instrument integrate the fuel quantity indicator, water temperature indicator and precise equipment timer, providing the operator with the most crucial vehicle operation data. Meanwhile, the panel is equipped with up to 14 indicator lights, including oil-water separation alarm, oil pressure alarm, etc., which can monitor the vehicle's health status in real time and prevent faults from occurring.

Thisforklift dashboard adopts professional industrial-grade connectors, which have reliable interfaces, are shock-resistant and anti-loosening, greatly enhancing the stability and durability of the connection. Its design aims to maintain outstanding performance in harsh forklift working environments (such as wide temperature range and vibration), presenting all important information clearly and intuitively to the driver, thereby effectively ensuring operation safety and improving equipment management efficiency. It is an indispensable intelligent and highly reliable instrument solution for modern internal combustion forklifts.

Technical Parameters of Motor Grader Instrument Panel Cluster:

Core Advantages of Motor Grader Instrument Panel Cluster:

1. Wide voltage compatibility and high stability: Supports dual voltage systems of DC12V/24V, with a wide operating voltage range (DC10-32V), which can adapt to voltage fluctuations during vehicle start-up and operation, ensuring that the instrument never crashes.

2. Comprehensive monitoring of core parameters: It centrally displays key data such as fuel, water temperature, and running time, and is equipped with 14 types of alarm indicator lights including oil-water separation and oil pressure, achieving all-round monitoring and early warning of vehicle status.

3. Industrial-grade connection reliability: Utilizing professional standards such as NE172501-1 for sheaths and terminals, the connection is firm, featuring excellent shock resistance and anti-corrosion performance, making it suitable for the high-vibration working environment of forklifts.

4. Strong environmental adaptability: With a robust design, it can operate stably in the wide temperature range commonly found in the industrial field, ensuring reliable readings even under harsh working conditions.

5. Enhance safety and maintenance efficiency: Through clear instructions and timely alarms, engine failures can be effectively prevented, ensuring operational safety. Meanwhile, precise timers provide accurate basis for equipment maintenance and upkeep.
