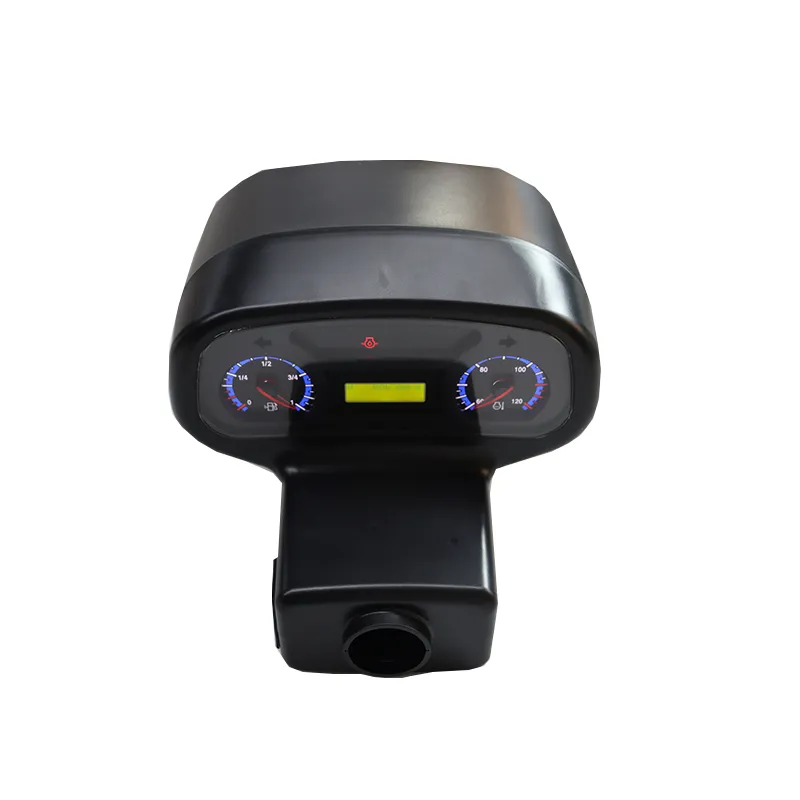

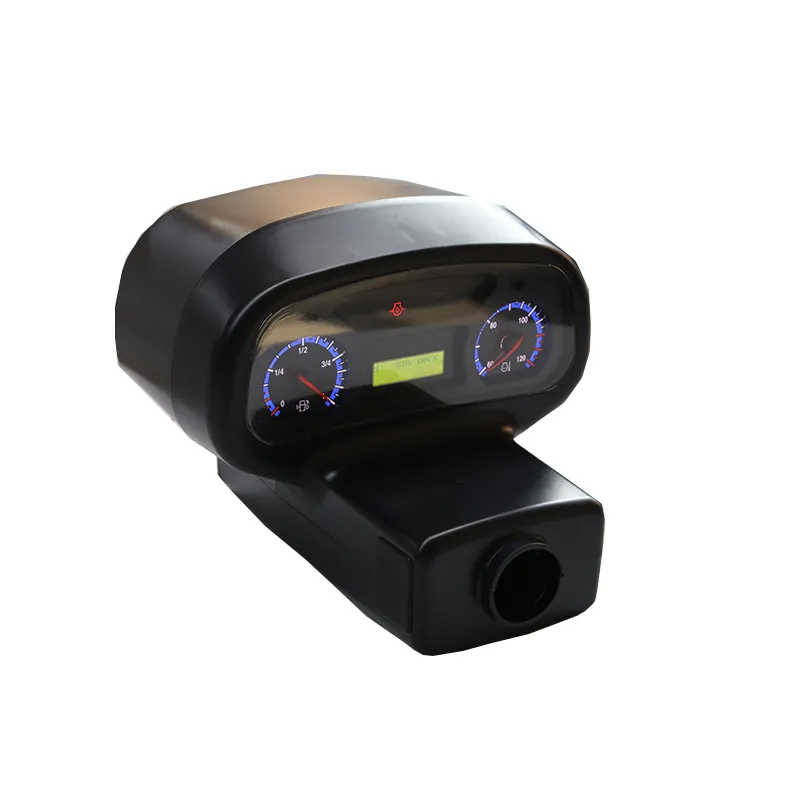

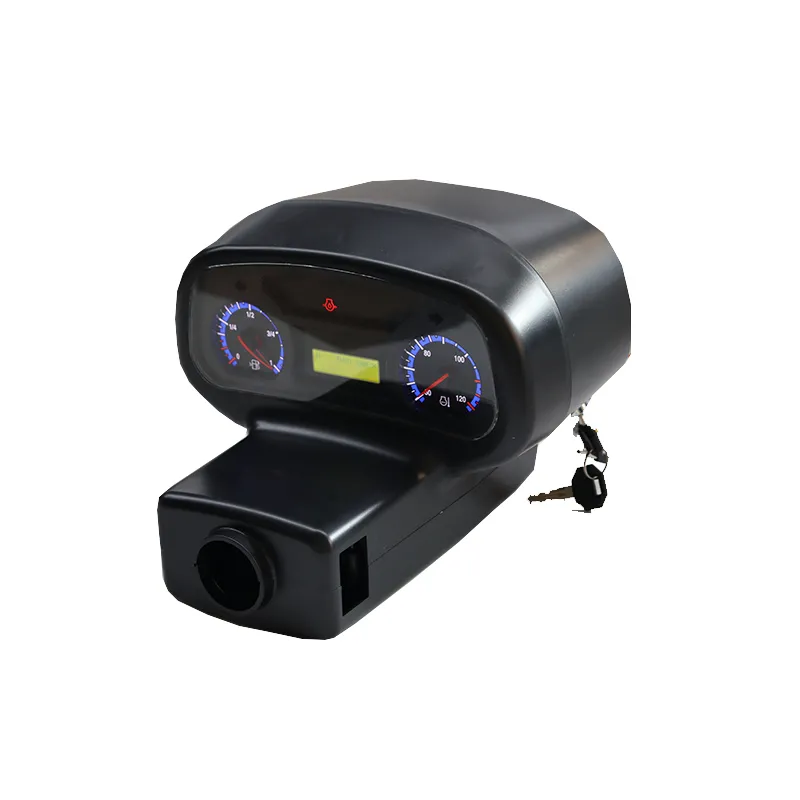

HZB181CANWZ1-YXU Full LCD dashboard, anti-glare tempered glass panel, hydraulic data synchronous display

This all-lcd dashboard is equipped with a glare-proof tempered glass panel, which enables the synchronous display of hydraulic data. The high-quality tempered glass panel provides comprehensive protection for the dashboard, effectively avoiding the problem of strong light reflection. Regardless of whether it is used for outdoor work during the day, the dashboard display is clear and transparent. The hard panel is scratch-resistant and wear-resistant, and dust and bumps are unlikely to damage the dashboard screen. This significantly extends the service life of the dashboard.

The dashboard is equipped with a high-speed signal transmission module. Core data such as hydraulic pressure, flow rate, and oil temperature are synchronized to the dashboard in real time. The complete hydraulic operation status of the equipment is presented on the dashboard without the need for additional monitoring devices. The all-lcd high-definition imaging allows for rich display layers on the dashboard, with various parameters arranged in separate sections. Operators can quickly grasp the equipment's working conditions by observing the dashboard.

The shock-proof and sealed enclosure securely houses the internal components of the dashboard. Even during construction site vibrations and shocks, the dashboard will not freeze or flicker. Standardized communication interfaces ensure stable signal transmission to the dashboard, with no data lag. The simple and integrated body simplifies the installation process of the dashboard and makes it easy to maintain later. Integrating glare protection and hydraulic synchronization monitoring, this dashboard is suitable for engineering equipment such as loaders and cranes, and is a high-value dashboard for construction machinery.

Technical Parameters of Bulldozer Dashboard HZB181CANWZ1-YXU:

Core Advantages of Bulldozer Dashboard HZB181CANWZ1-YXU:

1. Wide Voltage Compatibility: support DC12V/24V dual system, the working voltage covers DC10-32V, easy to cope with voltage fluctuations.
2. Full Environmental Adaptation: Stable operation under extreme temperatures of -30℃~80℃, reliable in both cold and heat.
3. Multi-dimensional Monitoring: integrated oil/water temperature/timing 3-in-1 display, 14 kinds of LED status indication (including charging, oil pressure, etc.), instant warning of hidden faults.
4. Ultra-low Power Consumption: dynamic operating current ≤ 700mA, standby power consumption of only 2mA, worry-free range.
5. Strong Protection: IP55 dustproof and waterproof, excellent performance in vibration and humidity environment.
