Forklift instrument display screen - single panel - replaceable component - simple operation suitable for all types of forklifts

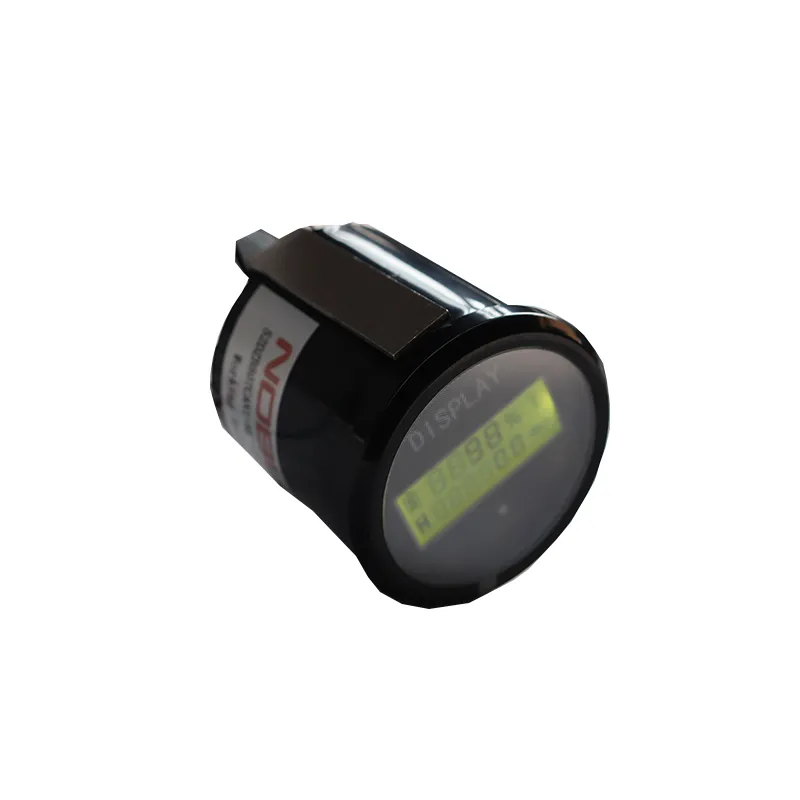

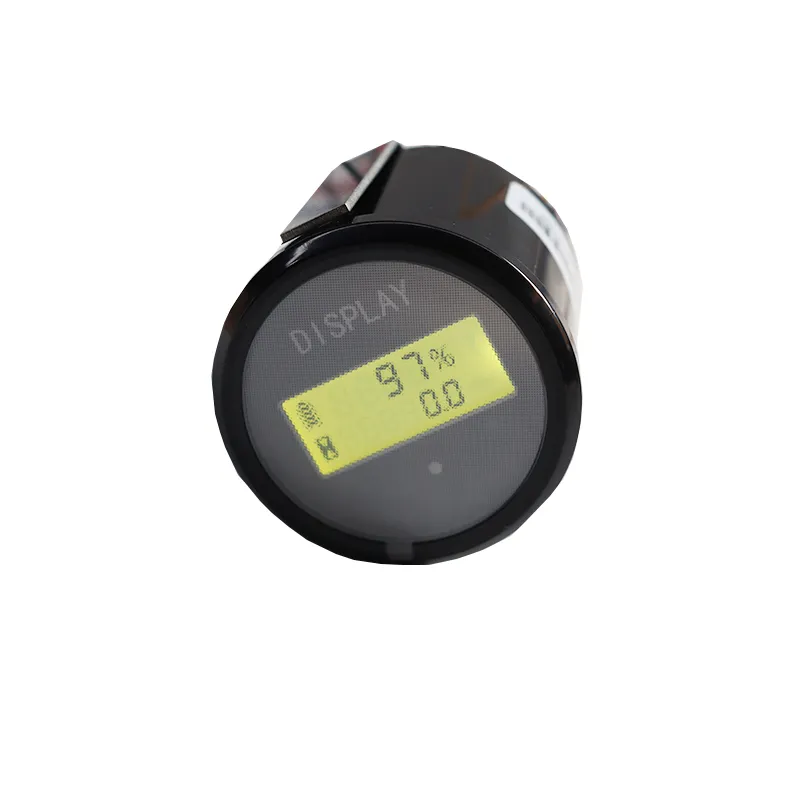

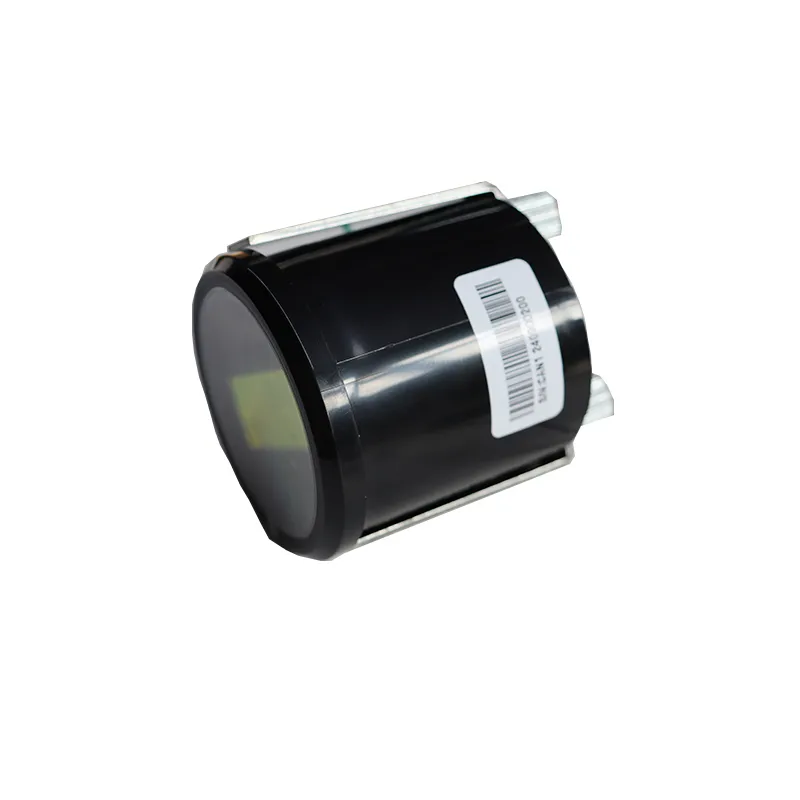

The 52DZB807CAN1-NL forklift instrument display is a dedicated single display for forklifts. It supports component replacement and is compatible with various forklifts with a minimalist operation. This instrument panel adopts a modular and split design. The internal functional components of the instrument panel are independently separated. After damage, the instrument panel does not need to be replaced as a whole; only the corresponding components need to be replaced to repair the instrument panel, significantly reducing the maintenance cost of the instrument panel.
The operation logic of the instrument panel is simple and intuitive. The key layout is clear. Novices can quickly operate the instrument panel. Without complex debugging, they can understand the information displayed on the instrument panel such as battery level, speed, and fault codes. The standardized universal interface enables the instrument panel to be compatible with lithium battery, internal combustion, and warehouse types of forklifts. Installation does not require significant modification of the instrument panel mounting position.
The shockproof and sealed housing fully protects the instrument panel. Dust in the workshop and jolting conditions will not damage the internal screen and wiring of the instrument panel. The high-definition display panel ensures clear instrument panel images. The CAN bus transmits vehicle data to the instrument panel in real time, and the operating status is simultaneously displayed on the instrument panel. The disassembly structure is simple, and it is convenient to dismantle when repairing the instrument panel. Replacing components does not damage the original seal of the instrument panel. The components can be replaced, the operation is simple, and the versatility is strong. This instrument panel is a cost-effective instrument panel for various types of forklifts.

Technical Parameters of 52DZB807CAN1-NL  Forklift single display screen

Coantagre Adves of 52DZB807CAN1-NL Forklift single display screen

1. 32-bit Cortex M3 main control chip.
2. Timing accuracy: 0.1h; timing data is non-volatile when power is off.

What factors should be considered when designing a forklift instrument panel?
